zedboard Xilinx Zynq-7000人机界面子卡 FMC-HMI 摄像头 LCD子卡

• Aptina MT9D112 fixed-focus, 2Mp CMOS digital image sensor
• ADI SSM2603 audio codec with 3.5mm line in, microphone in, line out and headphone out jacks
• Shanghai Tianma TM050RBH01 5” 800x480 TFT LCD with integrated 4-wire ｔｏｕｃｈ panel
• Male FMC LPC connector for digital signals
• XADC header for analog signals
• 12-pin female Pmod header
• Piezoelectric buzzer
• Compatible with wide range of VADJ voltages (1.8V-3.3V)

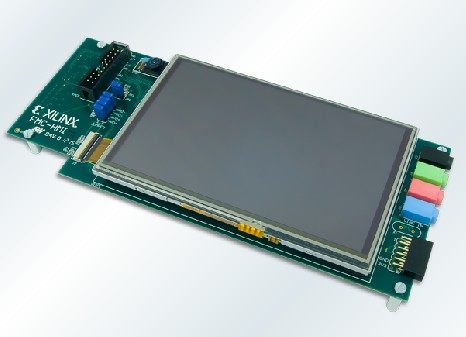

The FMC-HMI peripheral board enables developers to add a human interface to FPGA-based ｓｙｓｔｅｍs, and provides a development platform for customers to utilize image capture, ｔｏｕｃｈ digitizer and graphical user interface applications.

The FMC-HMI captures light with the Aptina MT9D112 digital image sensor. This sensor provides a maximum resolution of 1600x1200 at 15 frames per second. The Aptina has a 10-bit raw color depth, an I2C control bus, and can utilize Bayer, RGB, and YCrCb output formats. This image sensor utilizes an automatic exposure, gain, and white balance with powerful image correction algorithms, image scaling, and a FIFO output.

In addition, the FMC-HMI features the Shanghai Tianma TM050RBH01 5” light emitting diode (LED) backlit thin film transistor-liquid crystal display (TFT-LCD) assembly, which has a resistive ｔｏｕｃｈ panel covering the entire active display area.

Finally, the FMC-HMI features an Analog Devices Inc. SSM2603 Low Power Audio Codec that provides simultaneous playback and recording capabilities to and from a variety of sources through standard audio jacks. Users control the audio with a standard two-wire interface and an I2S compatible bus presents the digital audio.


Features the following components by Analog Devices:

• ADG709 3 Ω 4-Channel Multiplexer
• ADG3308 8-Channel Bidirectional Logic Level Translator
• SSM2603 Low Power Audio Codec
• ADP150-2.8 Ultralow Noise, 2.8V, 150 mA CMOS Linear Regulator
• ADP150-1.8 Ultralow Noise, 1.8V, 150 mA CMOS Linear Regulator
• ADP7102 20 V, 300 mA, Low Noise, CMOS LDO
• ADP123 5.5 V Input, 300 mA, Low Quiescent Current, CMOS Linear Regulator, Adjustable Output Voltage
