友善RK3399人脸识别NanoPi M4开发板WiFi双摄像头4K安卓7 8.1 3B+

套餐介绍
TF卡只支持Linux系统，如需Linux和Android请选择EMMC模块，本店独家提线刷和ADB调试工具，并且提供线刷方法，如需线刷和ADB调试请购买包含EMMC模块的无忧、扩展、豪华套餐！
只要单板：NanoPi-M4单板主机 1个-送双频天线；
单板+散热片：NanoPi-M4单板主机+M4散热片；
入门套餐：NanoPi-M4单板主机+M4散热片+5V2A电源适配器(如需5V4A加30元)+Type-C线（默认不带存储，需选配）；
无忧套餐：入门套餐+USB2UART串口调试工具+线刷和ADB调试工具+RTC纽扣电池；
扩展套餐：入门套餐+USB2UART串口调试工具+线刷和ADB调试工具+RTC纽扣电池+读卡器+16GB-TF卡+HDMI线+网线；
豪华套餐：入门套餐（5V4A电源）+USB2UART串口调试工具+线刷和ADB调试工具+RTC纽扣电池+读卡器+16GB-TF卡+HDMI线+网线+CAM1320摄像头+宽动态400万摄像头+4G全网通网络通信模块（仅支持Android系统）；

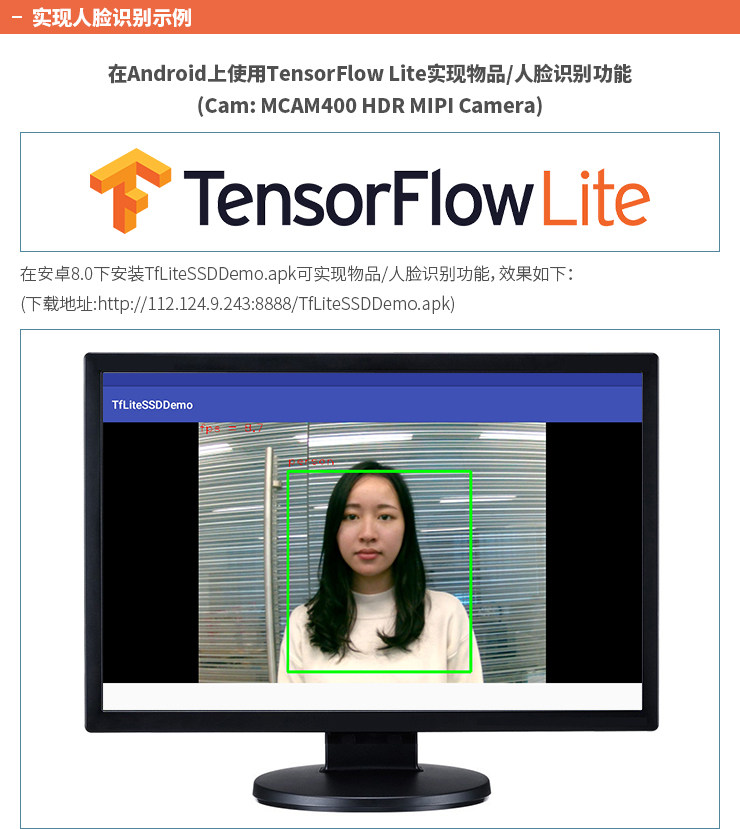

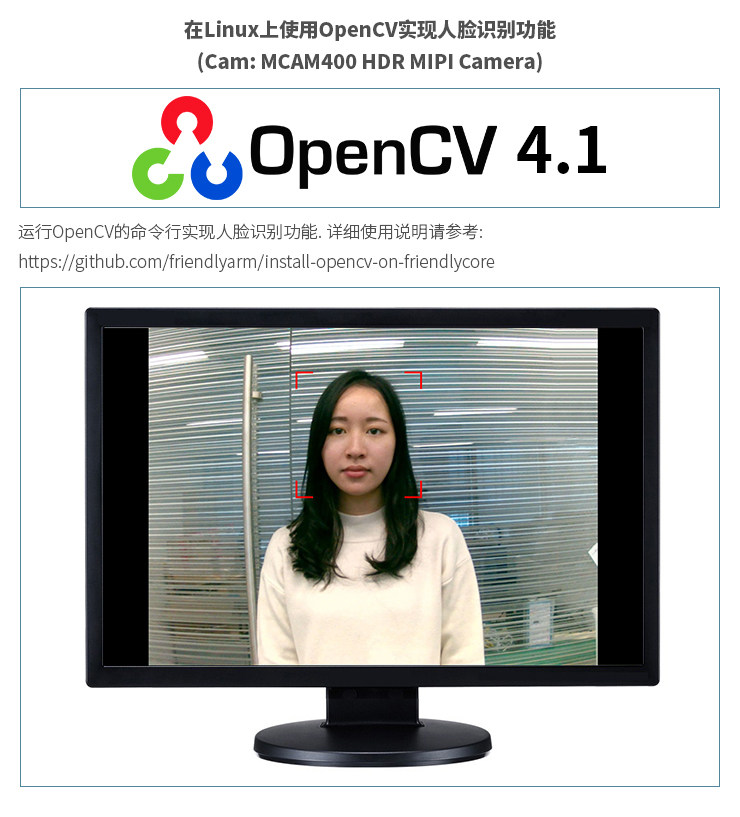

人脸识别基础套件：NanoPi-M4单板主机+M4散热片+5V4A电源适配器+Type-C线+USB2UART串口调试工具+MCAM400宽动态摄像头+HDMI线（更多人脸识别套餐，请点击：人脸识别开发套件）

温馨提示：本产品不附带光盘，所有资料均从以下链接获取【请先看资料后再确认购买噢】

- Wiki教程：http://wiki.friendlyarm.com/wiki/index.php/NanoPi_M4/zh

- 机械结构图（dxf格式）：http://wiki.friendlyarm.com/wiki/images/e/e4/NanoPi-M4-1807_Drawing%28dxf%29.zip

- 原理图：http://wiki.friendlyarm.com/wiki/images/d/dd/NanoPi-M4-2GB-1807-Schematic.pdf

http://wiki.friendlyarm.com/wiki/images/7/7a/NanoPi-M4-4GB-1807-Schematic.pdf

- 源代码：https://github.com/friendlyarm

- 固件下载地址：https://pan.baidu.com/s/1rZmMQEQL1tu15R6IeYrksw#list/path

可选模块介绍（点击图片查看详情）

可双摄高清USB摄像头	1300万像素高清摄像头	4G网络通信模块	400万像素宽动态摄像头
专用散热片	USB转串口调试工具	EMMC存储模块Android必备	存储卡扩展
M4专用SATA扩展板	TypeC数据线/电源线	USB电源适配器	RTC纽扣电池
USB Hub集线器	GPS模块
TTL转RS232串口模块	10.1英寸电容触摸屏	更大尺寸电容屏	高清HDMI线

Wiki: http://wiki.friendlyarm.com/wiki/index.php/NanoPi_M4/zh

CPU	Model: Rockchip RK3399 Number of Cores: 64-bit Dual Core Cortex-A72 + Quad Core Cortex-A53 Frequency: Cortex-A72(up to 2.0GHz), Cortex-A53(up to 1.5GHz)
GPU	Mali-T864 GPU，supports OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11, and AFBC
VPU	4K VP9 and 4K 10bits H265/H264 60fps decoding, Dual VOP, etc
Memory	Dual-Channel 4GB LPDDR3-1866 / Dual-Channel 2GB DDR3-1866
Storage	eMMC: no Onboard eMMC, but has a eMMC socket MicroSD Slot: MicroSD*1 for external storage up to 128GB
Connectivity	Ethernet: Native Gbps Ethernet WiFi: 802.11a/b/g/n/ac, Bluetooth 4.1, Wi-Fi and Bluetooth combo module, dual antenna interface Antenna*2: IPX Connector
Audio	Audio Output: 3.5mm Dual channel headphone jack, or HDMI Audio Input: microphone input interface*1

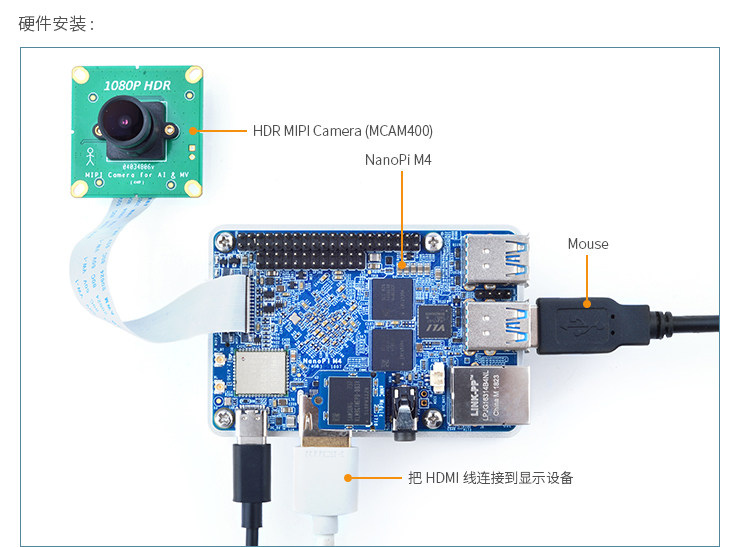

Video Input	one or two 4-Lane MIPI-CSI, dual ISP, up to 13MPix/s，supports simultaneous input of dual camera data
Video Output	HDMI1: HDMI 2.0a, supports 4K@60Hz，HDCP 1.4/2.2 4-Lane MIPI-DSI1
USB	USB 3.04: USB 3.0 Type-A ports USB Type-C1: Supports USB2.0 OTG and Power input USB Host*2 (included in GPIO2 2.54mm pitch pin header)
Pin-header	GPIO1: 40pin, 2.54mm pitch pin-header 33V/1.8V I2C, up to 13V UART, 13V SPI, 1SPDIF_TX, up to 83V GPIOs, 11.8V 8 channels I2S GPIO2: 24pin, 2.54mm pitch pin-header 2 independent native USB 2.0 Host interfaces, PCIe x2, PWM*1, PowerKey Serial Debug Port: 2.54mm pitch 4-pin-header, 3V level, 1500000bps
LED	Power LED(Red)1 GPIO Controlled LED(Green)1
Others	RTC: 2 Pin 1.27/1.25mm RTC battery input connector Working Temperature: -20℃ to 70℃
Power	DC 5V/3A
